AGILE Kitchen Bedroom Wall Cabinet Unit Door Lifting System
AGILE Kitchen Bedroom Wall Cabinet Unit Door Lifting SystemAGILE Kitchen Bedroom Wall Cabinet Unit Door Lifting SystemAGILE Kitchen Bedroom Wall Cabinet Unit Door Lifting System

AGILE Kitchen Bedroom Wall Cabinet Unit Door Lifting System

  (0)
£30.00
inc. 20% VAT (£25.00 exc. VAT)
List price: £40.00 - a saving of 25%
In stock

In stock



-
+
Free Delivery on orders over £100*
Click & Collect available
  • Emuca is incorporating the new Agile system designed for lifting doors located on kitchen and home furniture.
  • This system stands out for its soft and precise functioning, without the need for hinges to function.

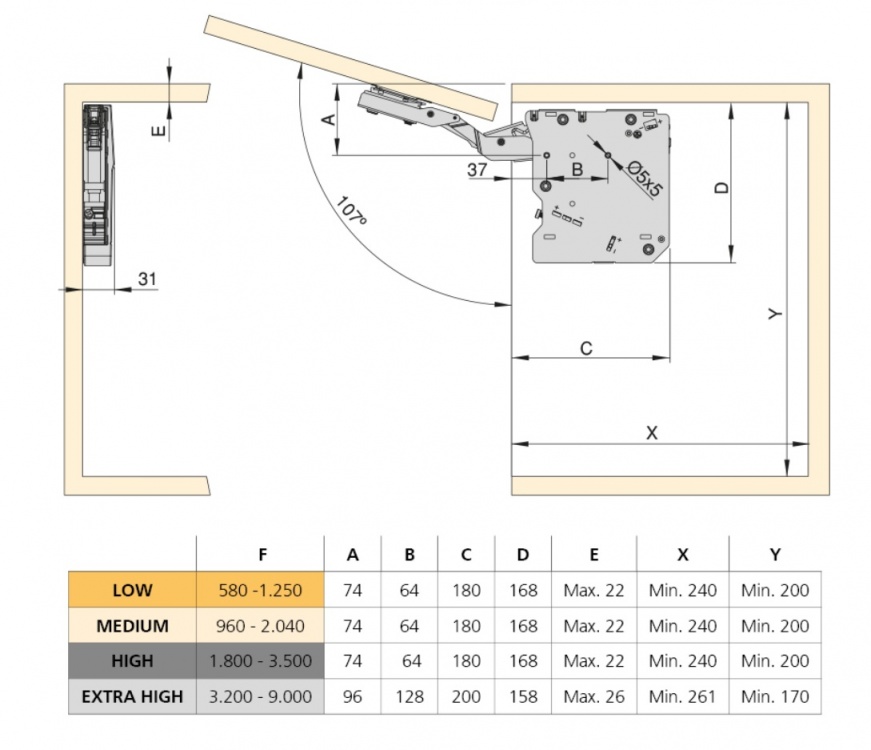

  • It has a 107º opening angle that makes the most of space and facilitates access to the furniture.
  • It is designed for a unit width of up to 1,200 mm and a height of between 250 and 500 mm.
  • It can be used with board thicknesses of 16 mm to 28 mm.
  • Its greatest benefit is that it makes it possible to adjust the strength of the mechanism, in order to be able to leave the door open in any position.
  • Also, it makes it possible to adjust the position of the door with ±2 mm adjustment in three dimensions (height, width and depth).
  • It also has the capacity to adjust the soft closing speed.

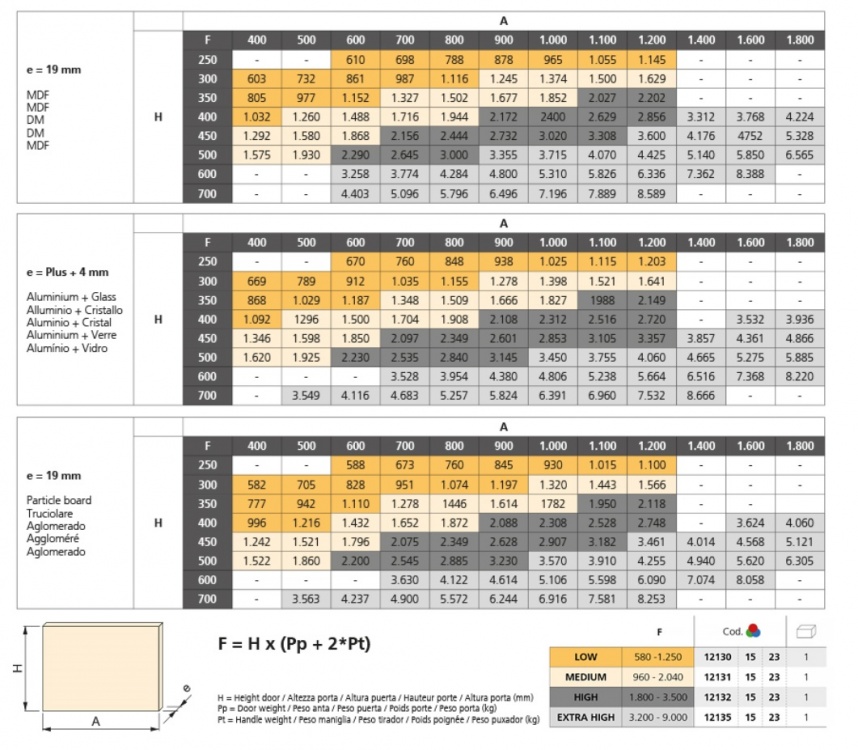

  • Three different strengths are offered in order to encompass a greater range of door measurements and weights.

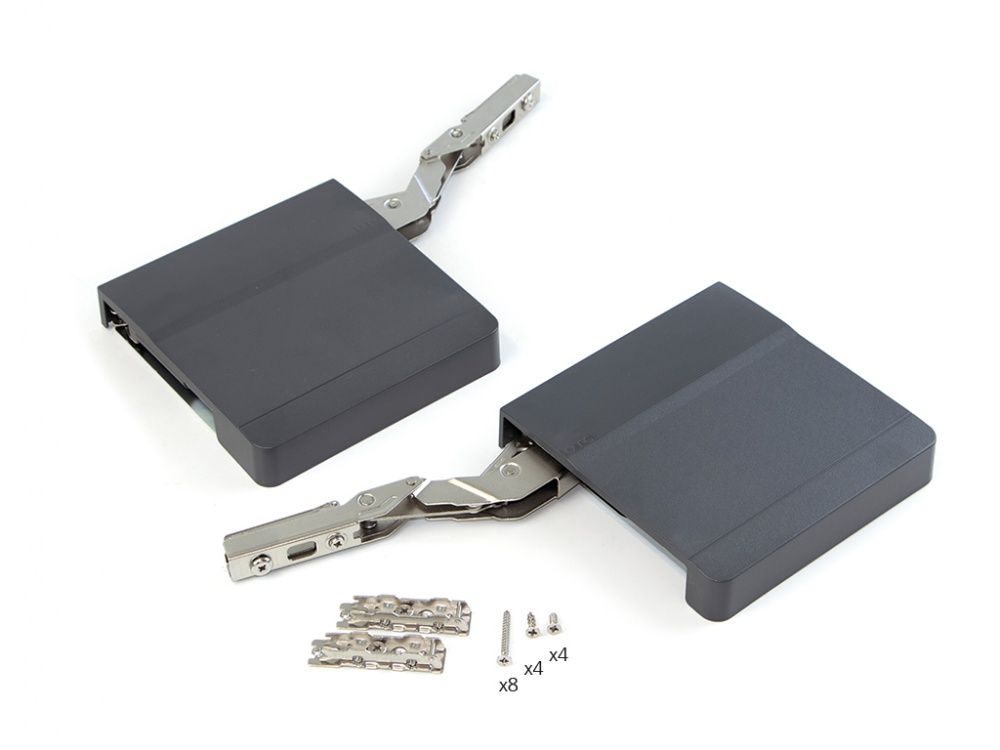

  • The set of lifting springs is supplied with the hooks and screws needed for fastening.
  • Likewise, the cover caps are included, they are available in white and anthracite grey colours.
  • A marking template is included in order to facilitate installation.
  • And it is worth highlighting that no tools are needed in order to disassemble the door thanks to its easy clipping system
  • Assembly without the need for hinges.
  • 107º Door opening angle.
  • For board thickness of 16 to 28 mm.
  • Adjustment of the strength of the mechanism.
  • Three-dimensional adjustment of the door position ±2mm.
  • Adjustment of the speed of the soft closing.
  • Disassembly of the door without tools.
  • Includes mounting template, hooks and screws.
  • Order qty: 1 set

Bar Code:  1213015
Part Number:  13197
Brand:  Emuca
