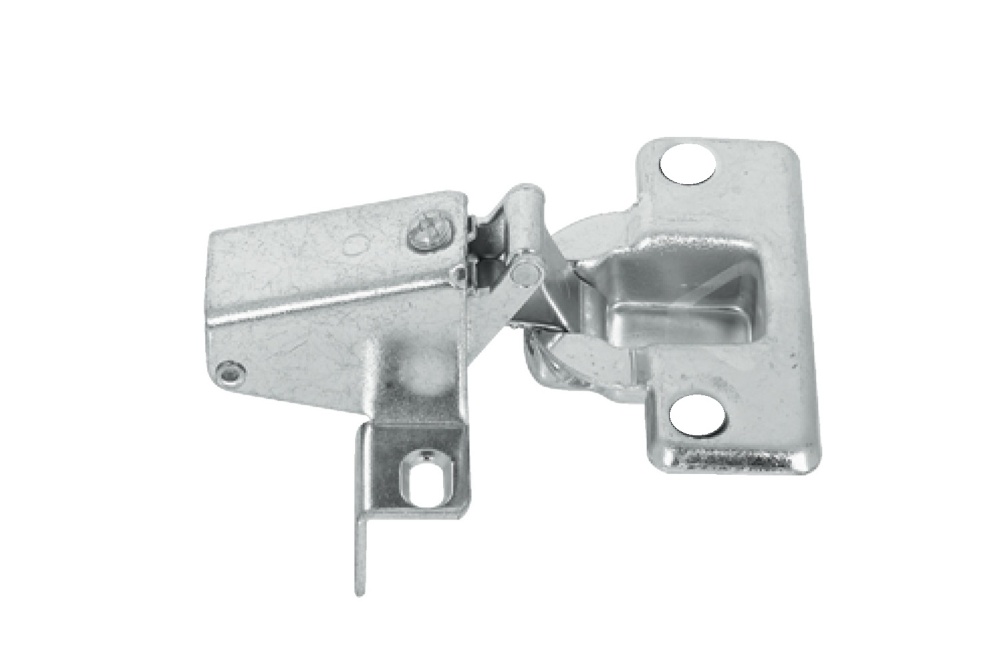

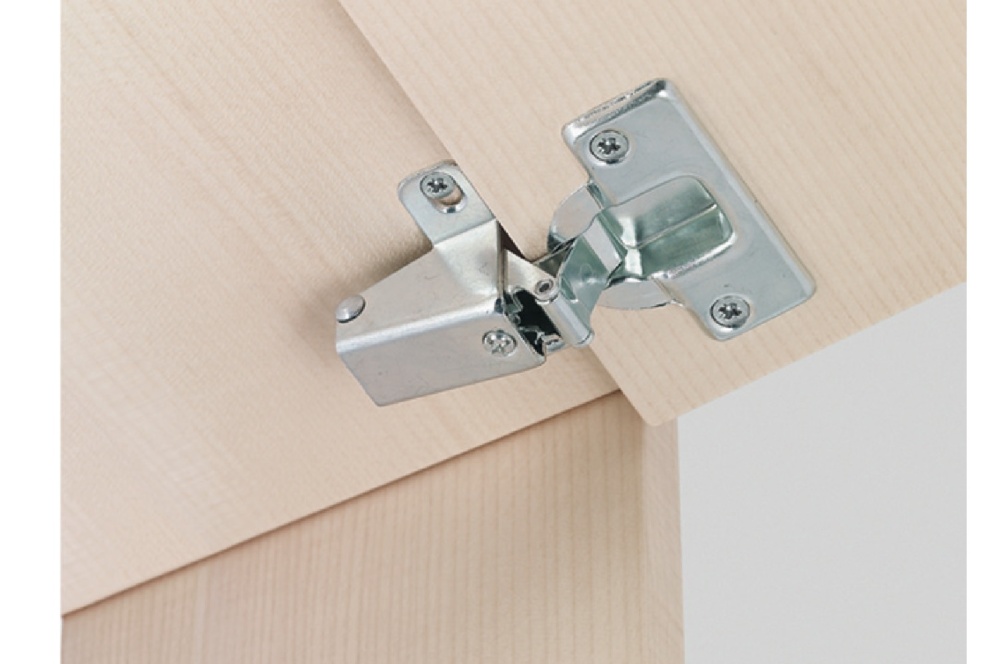

Swing Up Hinge for Straight Flaps / Screw Fixing Cup
  Zoom
Swing Up Hinge for Straight Flaps / Screw Fixing CupSwing Up Hinge for Straight Flaps / Screw Fixing CupSwing Up Hinge for Straight Flaps / Screw Fixing CupSwing Up Hinge for Straight Flaps / Screw Fixing Cup

Swing Up Hinge for Straight Flaps / Screw Fixing Cup

  (0)
£2.50
inc. 20% VAT (£2.08 exc. VAT)
In stock

In stock

-
+
Free Delivery on orders over £100*
Click & Collect available
  • With automatic closing spring
  • Maximum flap size H 315 x W 450 mm
  • Area of application: for straight flaps
  • Version: with automatic closing spring
  • For door material: wood
  • Material: steel
  • Colour/finish: zinc plated
  • Opening angle: 95°
  • For lid thickness: 12 – 22 mm
  • For lid width: 450 mm
  • For lid height: 315 mm
  • Cup fixing: for screw fixing

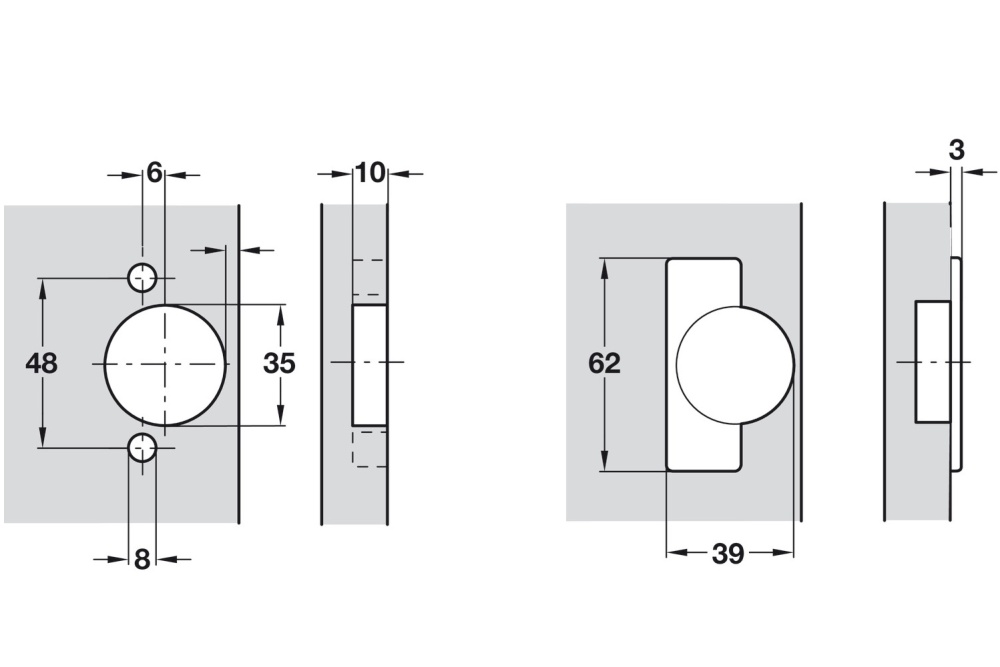

  • Drilling pattern: 48/6
  • Installation: flap for screw fixing to cabinet

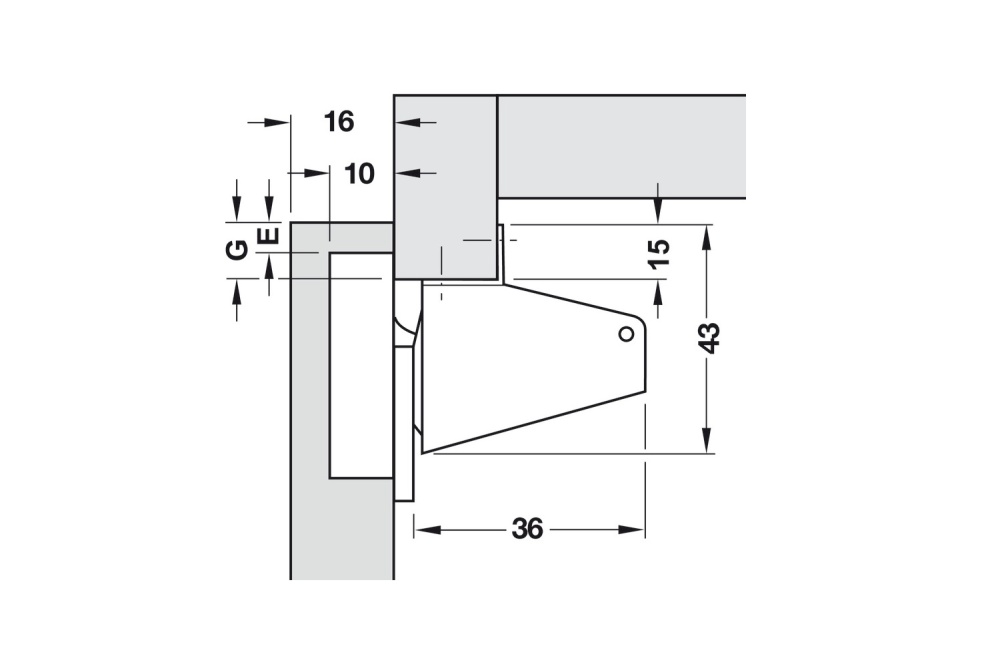

  • Installation reference: example calculation of flap overlay: Overlay G = 4 mm + distance to cup E (4 mm) = 8 mm
  • For lid weight: 1.5 kg
  • Order Hospa Ø 4.5 mm countersunk screws separately
  • Trial mounting is recommended
  • Order qty: 1 pc

Bar Code:  356.35.815
Part Number:  18068
Brand:  HAFELE

Be the first to Write a review for this item!

Share
Related Products

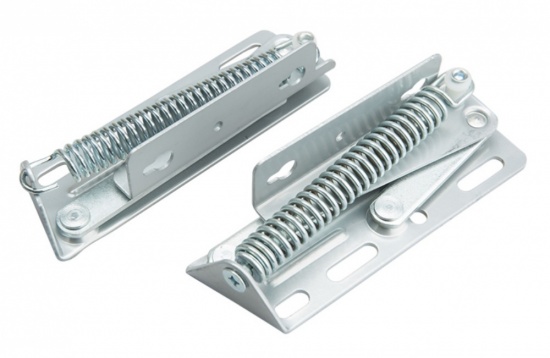

Both Sides 180N - 75° Swing Up Flap Hinges
Both Sides 180N - 75° Swing Up Flap Hinges
  (0)
£10.00
In stock  In stock
Both Sides 180N - 90° Swing Up Flap Hinges
Both Sides 180N - 90° Swing Up Flap Hinges
  (0)
£6.90
In stock  In stock

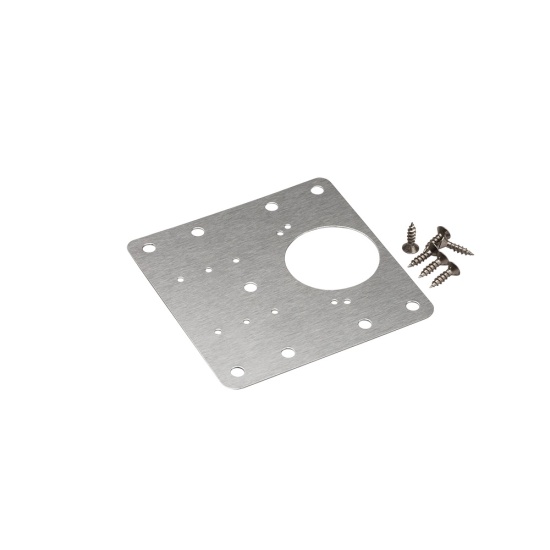

Cupboard Door Hinge Repair Plate with Fixing Screws
Cupboard Door Hinge Repair Plate with Fixing Screws
  (0)
£1.50
In stock  In stock

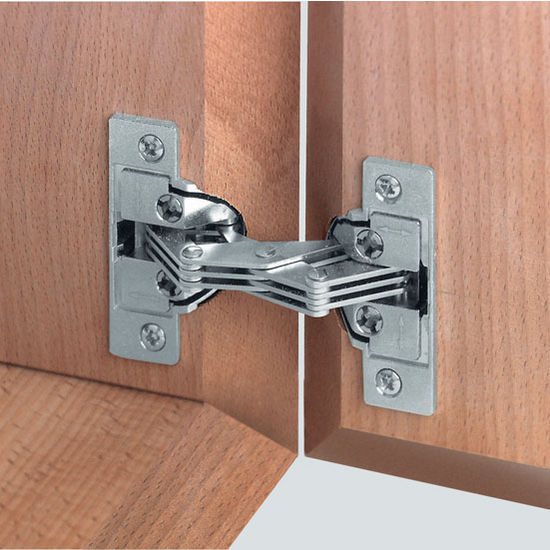

Mitre Flap Hinge Screw Fixing
Mitre Flap Hinge Screw Fixing
  (0)
£17.00  -  £19.00
In stock  In stock
Swing Up Flap Hinge Overlay Mounting Opening Angle 90°
Swing Up Flap Hinge Overlay Mounting Opening Angle 90°
  (1)
£3.20  -  £3.40
In stock  In stock
Swing Up Flap Hinge Mounting with Panel Opening Angle 90°
Swing Up Flap Hinge Mounting with Panel Opening Angle 90°
  (6)
£3.19  -  £3.39
In stock  In stock

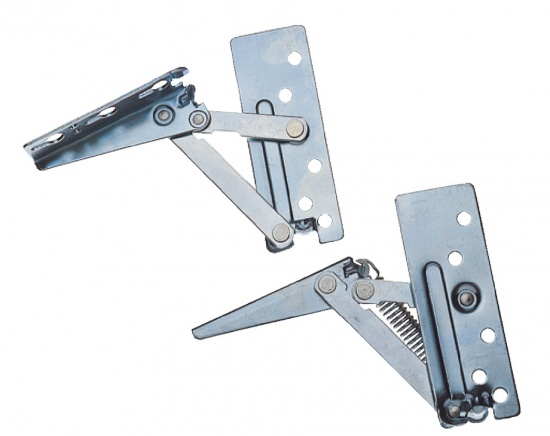

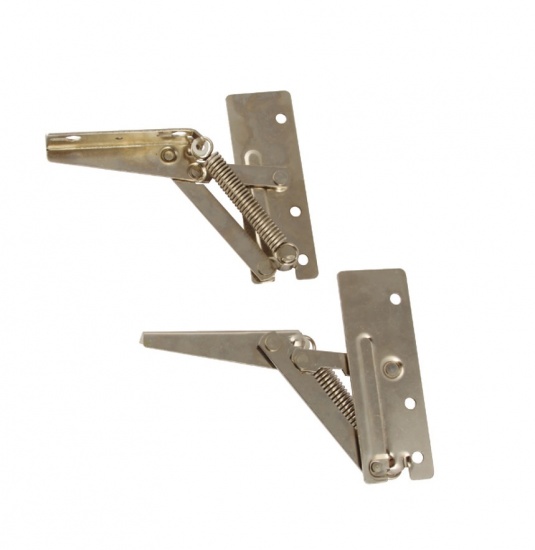

Swing up Flap Stay Hinges with Sprung
Swing up Flap Stay Hinges with Sprung
  (2)
£8.00
In stock  In stock

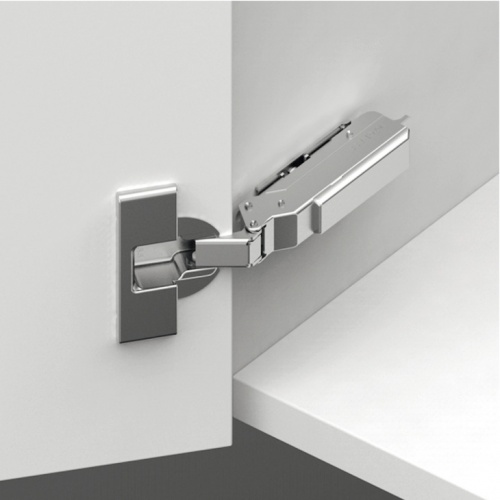

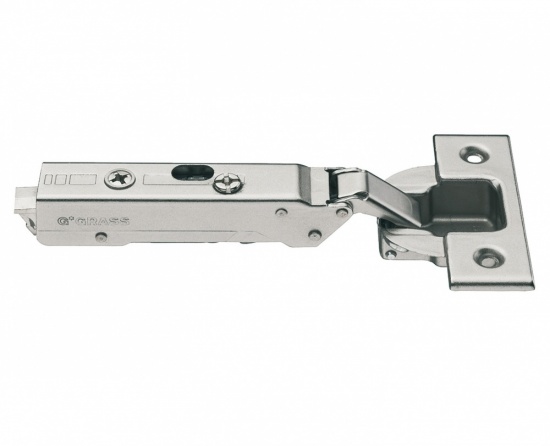

Tiomos 110° PLUS Cabinet Door Concealed Hinge Screw Fixing
Tiomos 110° PLUS Cabinet Door Concealed Hinge Screw Fixing
  (0)
£4.50  -  £5.50
In stock  In stock

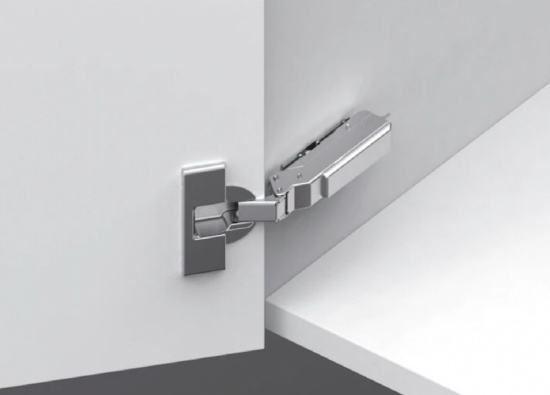

Tiomos 110° Soft Close Cabinet Door Concealed Hinge Screw Fixing
