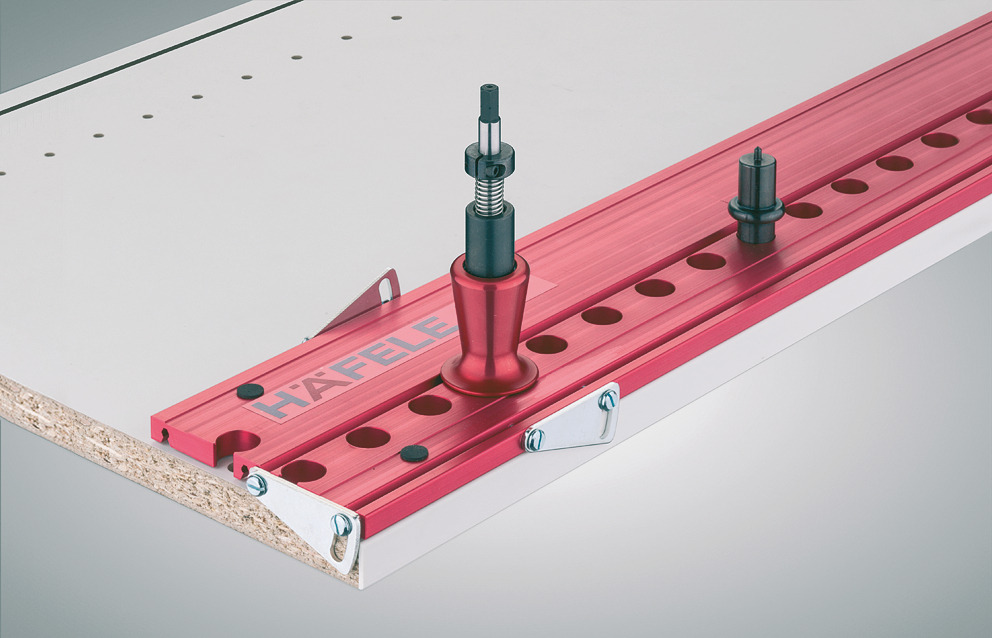

Drilling Jig Variantool-N / IXconnect
  Zoom
Drilling Jig Variantool-N / IXconnectDrilling Jig Variantool-N / IXconnectDrilling Jig Variantool-N / IXconnect

Drilling Jig Variantool-N / IXconnect

  (0)
£209.00
inc. 20% VAT (£174.17 exc. VAT)
In stock

In stock

-
+
Free Delivery on orders over £100*
Click & Collect available

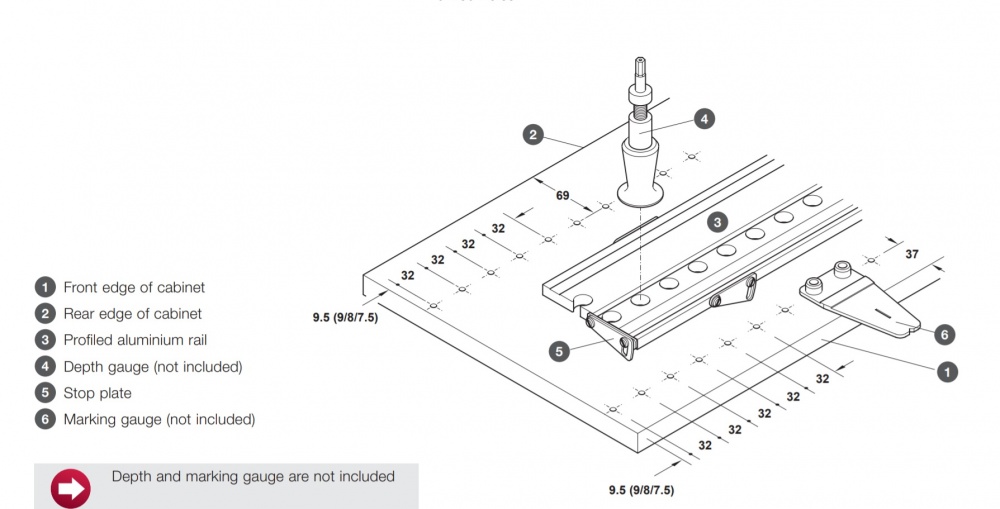

  • For drilling Ø 5 mm holes consistently at 32 mm intervals (Ø 8 mm and 10 mm dowel holes, not included)
  • The jig allows for an inset distance from the front carcase edge of 37 mm and from the back edge of 69 mm
  • Integral sliding positioning tabs ensure consistent drilling locations
  • An ideal addition to the other Unitool drilling jigs, for drilling series of holes in a line or groups of holes according to
Set consists of:
  • 1 x Rail, profiled aluminium E6-treated, 1172 x 120 x 10 mm for 37 holes at 32 mm intervals (other system intervals available on request)
  • 8 x Adjustable stop plates for edge distances of 37 and 69 mm
  • 2 x Locating pins for Ø 5 mm holes
  • 1 x Drilling jig
  • Order qty: 1 set

Bar Code:  001.27.016
Part Number:  12024
Brand:  HAFELE

Be the first to Write a review for this item!

Share
Related Products
NEW
Drilling Jig for Metalla Mounting Plate and Hinge
Drilling Jig for Metalla Mounting Plate and Hinge
  (0)
£3.00
In stock  In stock

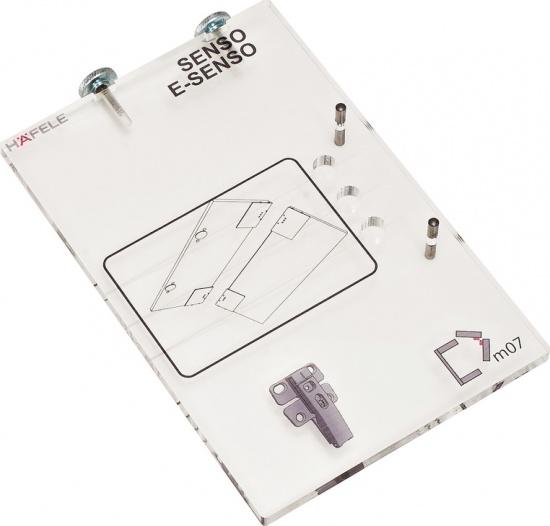

Drilling Jig for Senso and Free Fold Connecting Hinges
