For industry, joiners and cabinet makers.
Connecting bolt for universal use within the Minifix® connector system with special benefits:
- extremely installation-friendly, no tools are required
- no surface damage caused by insertion and removal of spreading bolt
Drilling depth stop ensures ideal bolt position

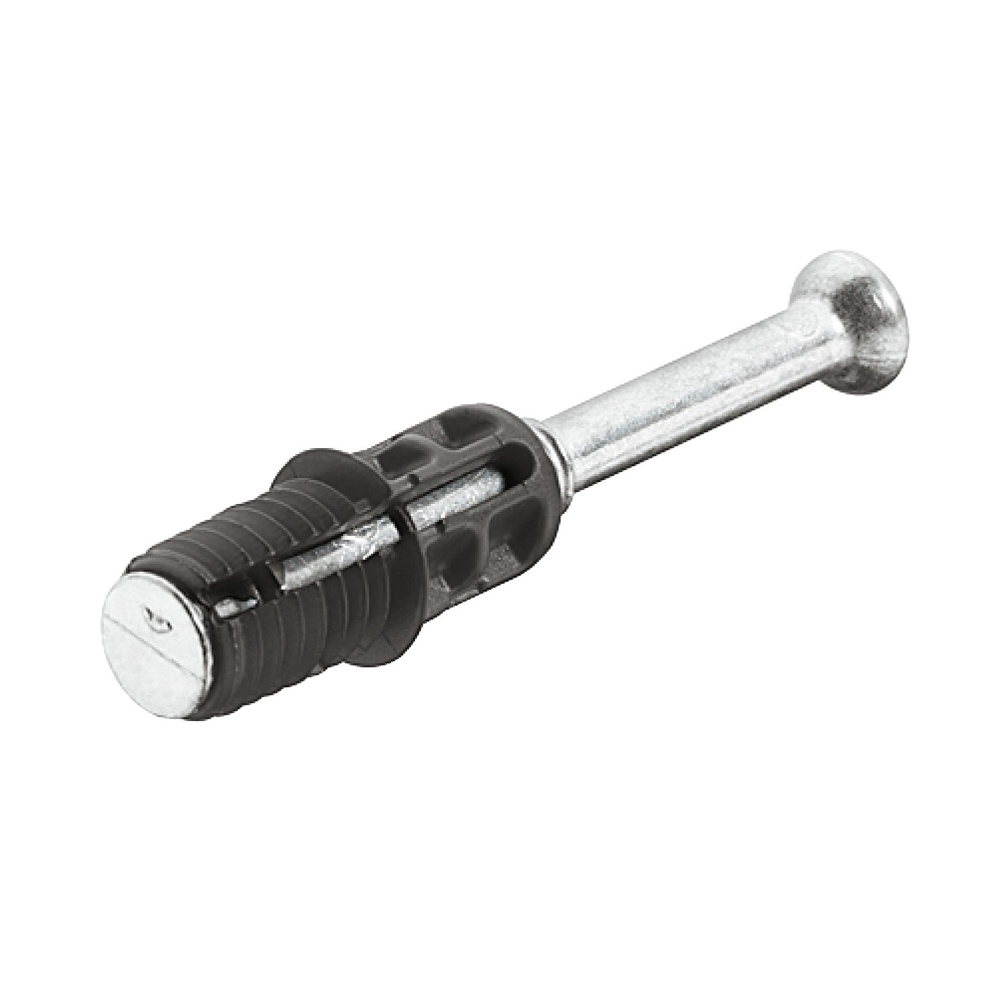

Zinc alloy bolt with black plastic spreading dowel with harpoon thread
Thread: spreading sleeve

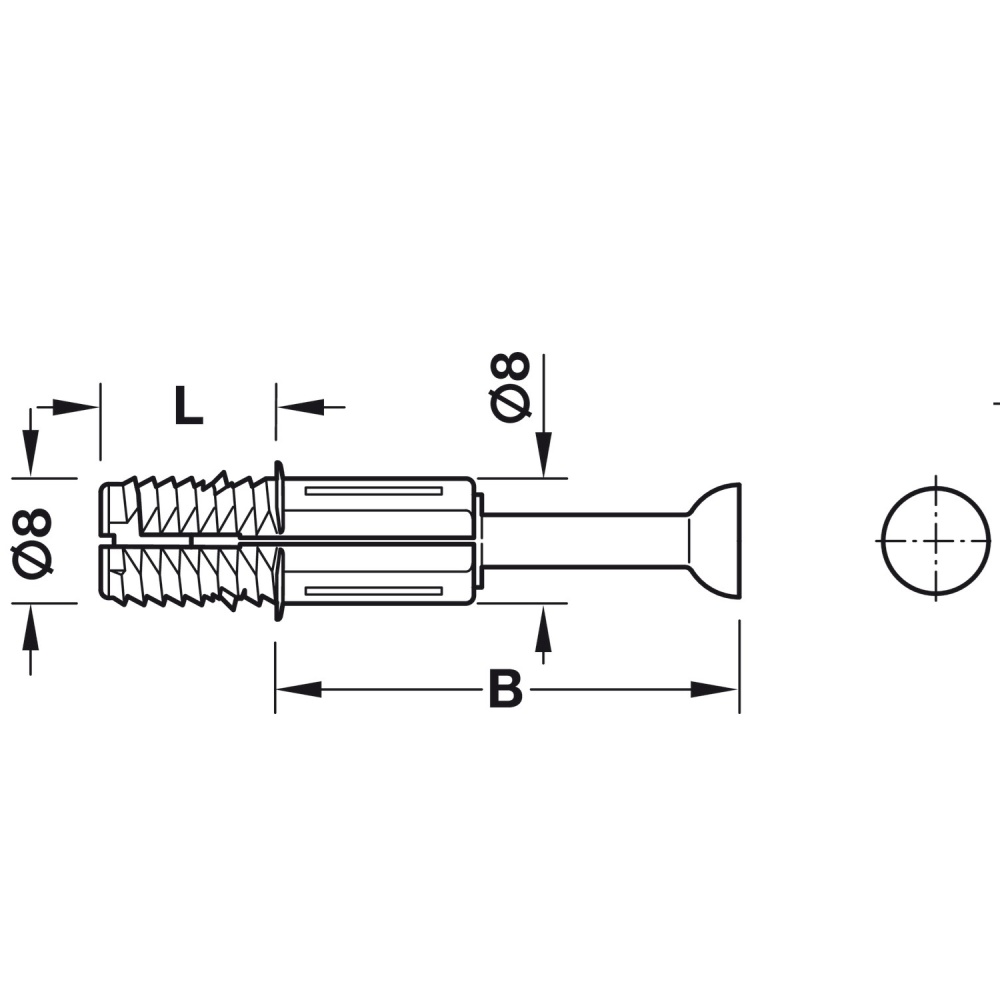

Thread length L: 11.50 mm
For drill hole: Ø 8 mm
Colour/finish: black, chromated
Area of application: for one-sided installation and for industry, joiners and cabinet makers
Material: plastic, zinc alloy
Bolt hole: 8 mm
For wood thickness ≥ 15 mm

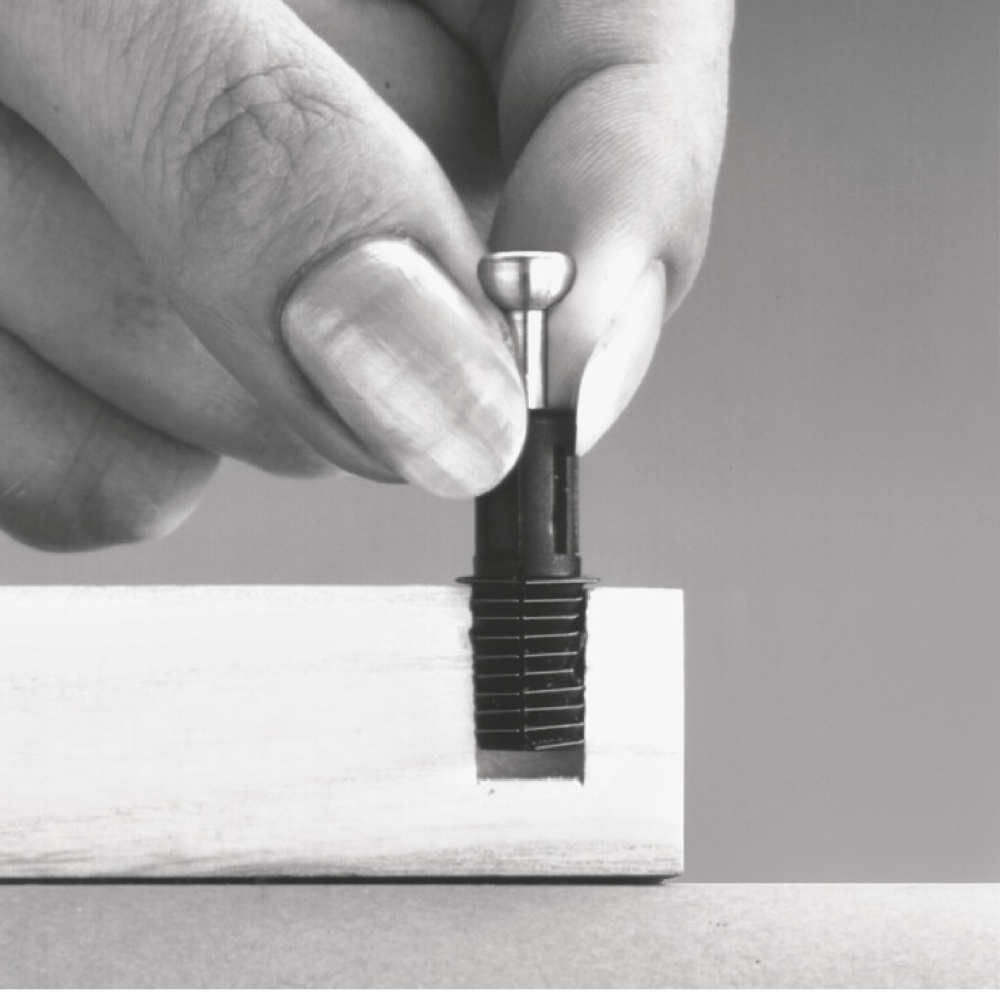

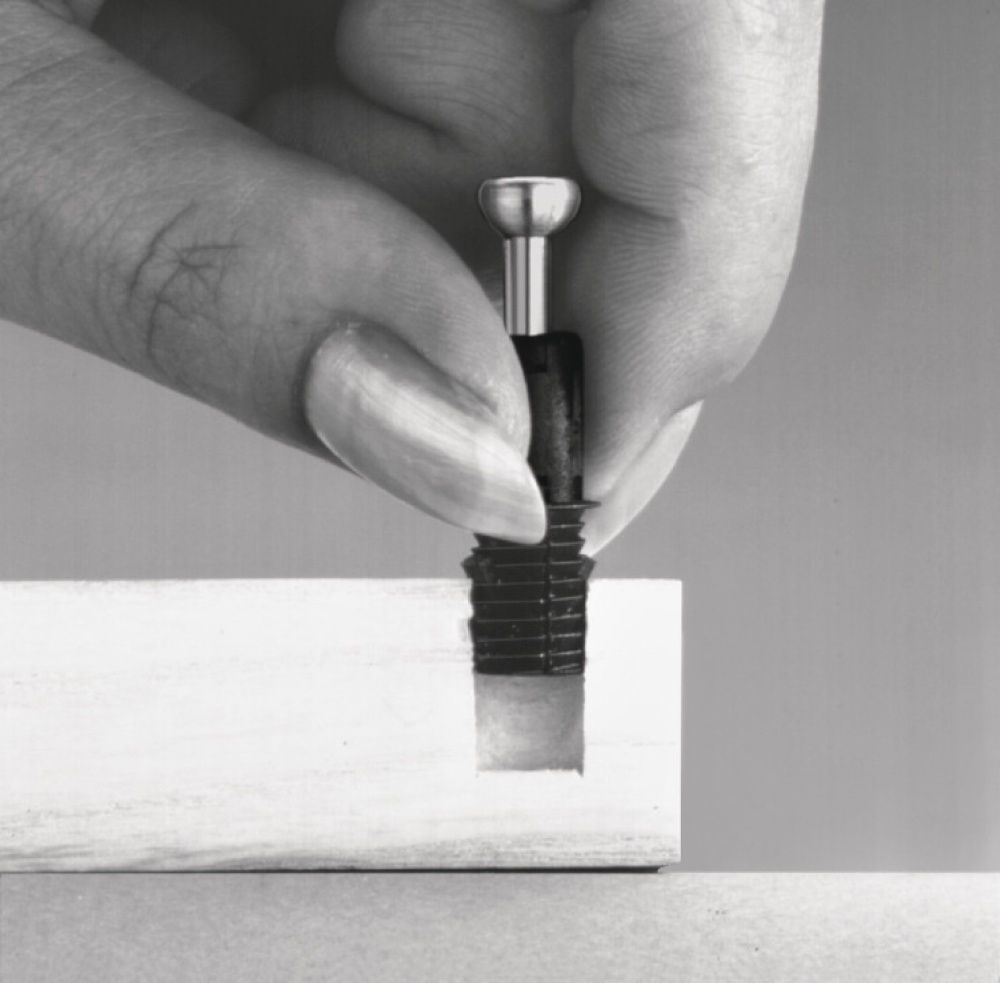

Installation: for press-fit installation in Ø 8 mm pre-drilled holes
Häfele Lifetime Guarantee 25 years
Functionality: When the connector is tightened, the double cone in the bolt expands the sleeve and pushes the threads into the wood. The stronger the tightening force, the stronger the connection.
Order Minifix housings separately
Order qty: 100 pcs
